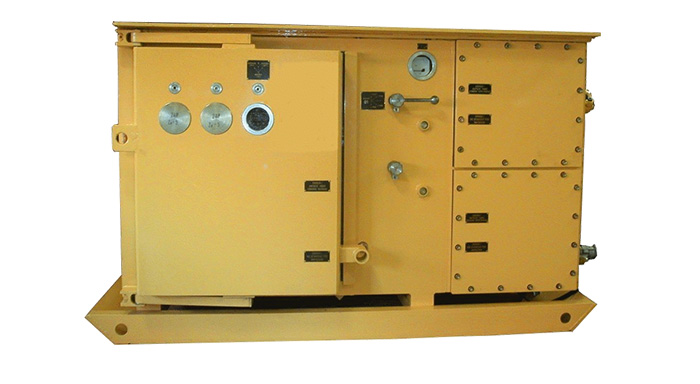

PACEMAKER FLAMEPROOF THYRISTOR SWITCH TYPE WROT 1400.2A
Pacemaker switch type WROT-1400.2 is made in flameproof enclosure type ZAP-BLA1 and it is used for soft start power supply and protection of two driving motors of belt tensioning or scrapers with voltage 3x1000VAC or 3x500VAC. Additionally it can supply 2 belt tensioning engines (reversal work) it has supportive transformer to power supply 2 clearances with voltage 3x230VAC or 3x500VAC with possibility of supporting cramps with voltage 42VAC and tapping with voltage 3x127VAC or 3x230VAC.
Rated voltagee: |
3x500VAC/3x1000VAC |
Rated current: |
460A |
Load drains without tensioning station (sum of drains 3 i 4 ≤ 90A): |
Sum of drains 1 i 2 ≤ 360A |
Load drains without tensioning station (sum of drains 3 i 4 = 0A): |
Sum of drains 1 i 2 ≤ 450A |
Max load of a single drain: |
400A |
Sum of drains releasers: |
1000V~ ≤ 1,75A |
Outflows to power releasers: |
3x230VAC lub 3x500VAC, 42VAC, 5kVA – 2 outflows |
Outflows to Power lighting and/ Or another receiver: |
3x127VAC lub 3x230VAC, 5kVA – 2 outflaws |
The outflow auxiliary controlled: |
- The outflow auxiliary controlled 42VAC, 420VA - The outflow auxiliary controlled 24VAC, 200VA |
Overall dimensions: |
- length: 1750 cm - width: 885 cm - height: 1000 cm - weight: 1600 kg |
Explosion proof construction: |
I M2 Ex d [ia Ma] I Mb lub I M2 Ex d [ib] I Mb |
*We reserve the right to change parameters
- 1 power track
- 3 drains for the conveyor
- 1 outflows for a tension station (reverse operations)
- 3 drains for releasers 3x230V or 3x500V or 3x1000V and 42VAC
- 1 additional outflow 1000VAC
- 2 outflows for drain 3x127V lub 3x230VAC
- 1 drain voltage auxiliary 42V i 24V
- thyristor module for soft start
- system control module thyristor
- reverse switch
- protection from: overload, short circuit, asymmetry, discontinuities ground wire, decrease the insulation resistance on the drains, engine temperatur es, the temperature of thyristors
- intrinsically safe control circuits
- control releasers
- tensioning control stadion
- lock the door opening from the main chamber
- ability to work on stiff
- digital ammeters
- voltmeter inlet
- signaled control work
- emergency switch
- visualization (on request)
- cooperation with well-known automation systems
- pre-start signaling
- clearing security without opening the chamber
- local control
- integrated Power supply intrinsically safe
